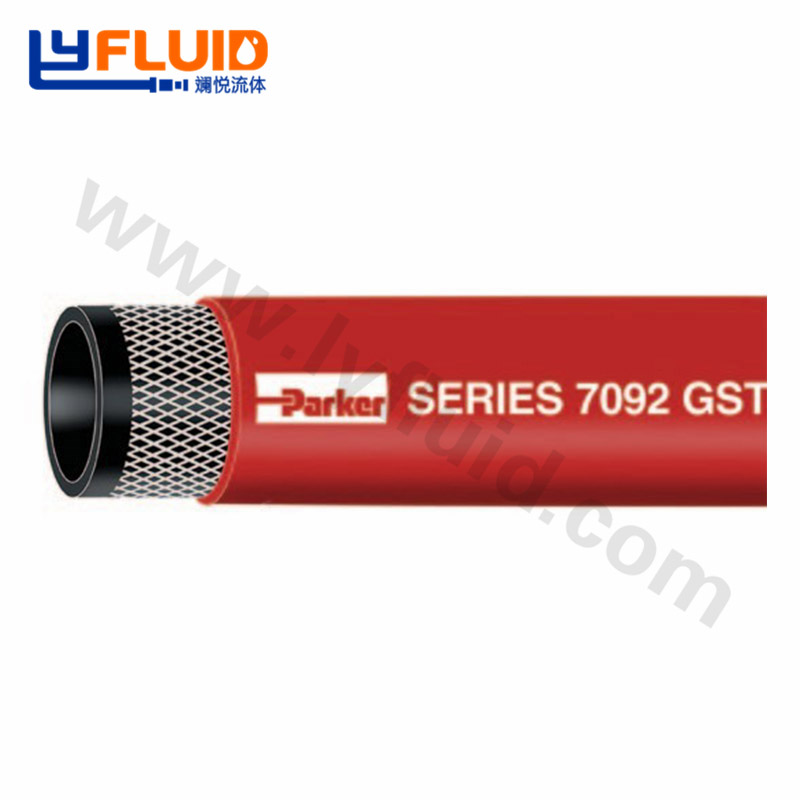

派克水管 7092/7093
应用
GSTII多用途软管用于输送空气、一般化学物质和水。软管内壁能有效阻隔与润滑系统中的轻质油雾，软管具有良好的柔性灵活性， 耐磨性，耐高温性和耐臭氧性，多种颜色便于使用识别。广泛用于农业，建筑业和一般工业等领域。
| 内 层: | 黑色，三元乙丙橡胶 |
|---|---|
| 增强层: | 多层合成线绳 |
| 外 层: | 黑色、蓝色、绿色、红色和黄色EPDM，表面光滑 |
| 温 度: | -40℉ 到 +212℉ (-40℃ 到+100℃) |
| 工作压力： | 200psi（具体看口径） |
| 安全系数： | 4:1 |
产品描述
| 产品型号 | 内径 | 外径 | 工作压力 | 爆破压力 | 弯曲半径 | 重量 | 包装长度 | |
|---|---|---|---|---|---|---|---|---|
| 7092 or 7093 | (in) | (mm) | (mm) | (bar) | （bar) | (mm) | (kg/m) | (m) |
| -19200 | 3/16" | 4.8 | 11.1 | 13.8 | 55.2 | 50.8 | 0.1 | 243.84 |
| -19300 | 3/16" | 4.8 | 11.1 | 20.7 | 82.8 | 50.8 | 0.1 | 243.84 |
| -25200 | 1/4" | 6.4 | 12.7 | 13.8 | 55.2 | 63.5 | 0.13 | 243.84 |
| -2520050 | 1/4" | 6.4 | 12.7 | 13.8 | 55.2 | 63.5 | 0.13 | 15.24 |
| -25250 | 1/4" | 6.4 | 12.9 | 17.2 | 68.8 | 76.2 | 0.16 | 243.84 |
| -25300 | 1/4" | 6.4 | 14 | 20.7 | 82.8 | 83.8 | 0.16 | 243.84 |
| -2530050 | 1/4" | 6.4 | 14 | 20.7 | 82.8 | 83.8 | 0.16 | 15.24 |
| -31200 | 5/16” | 7.9 | 15.1 | 13.8 | 55.2 | 83.8 | 0.16 | 228.6 |
| -31300 | 5/16” | 7.9 | 15.9 | 20.7 | 82.8 | 88.9 | 0.2 | 228.6 |
| -3130050 | 5/16” | 7.9 | 15.9 | 20.7 | 82.8 | 88.9 | 0.2 | 15.24 |
| -38200 | 3/8" | 9.5 | 16.7 | 13.8 | 55.2 | 88.9 | 0.2 | 213.36 |
| -3820050 | 3/8" | 9.5 | 16.7 | 13.8 | 55.2 | 88.9 | 0.2 | 15.24 |
| -38250 | 3/8" | 9.5 | 16.7 | 17.2 | 68.8 | 101.6 | 0.2 | 213.36 |
| -38300 | 3/8" | 9.5 | 17.5 | 20.7 | 82.8 | 101.6 | 0.23 | 213.36 |
| -3830050 | 3/8" | 9.5 | 17.5 | 20.7 | 82.8 | 101.6 | 0.23 | 15.24 |
| -50200 | 1/2" | 12.7 | 20.7 | 13.8 | 55.2 | 114.3 | 0.3 | 167.64 |
| -5020050 | 1/2" | 12.7 | 20.7 | 13.8 | 55.2 | 114.3 | 0.33 | 15.24 |
| -50250 | 1/2" | 12.7 | 21.4 | 17.2 | 68.8 | 114.3 | 0.33 | 167.64 |
| -50254 | 1/2" | 12.7 | 21.8 | 17.2 | 68.8 | 127 | 0.33 | 152.4 |
| -50304 | 1/2" | 12.7 | 22.2 | 20.7 | 82.8 | 127 | 0.36 | 152.4 |
| -5030450 | 1/2" | 12.7 | 22.2 | 20.7 | 82.8 | 127 | 0.36 | 15.24 |
| -63200 | 5/8" | 15.9 | 24.6 | 13.8 | 55.2 | 139.7 | 0.36 | 137.16 |
| -6320050 | 5/8" | 15.9 | 24.6 | 13.8 | 55.2 | 139.7 | 0.36 | 15.24 |
| -63254 | 5/8" | 15.9 | 26.2 | 17.2 | 68.8 | 152.4 | 0.49 | 137.16 |
| -63304 | 5/8" | 15.9 | 27 | 20.7 | 82.8 | 139.7 | 0.52 | 137.16 |
| -75200 | 3/4" | 19.1 | 28.2 | 13.8 | 55.2 | 152.4 | 0.49 | 121.92 |
| -7520050 | 3/4" | 19.1 | 28.2 | 13.8 | 55.2 | 152.4 | 0.49 | 15.24 |
| -75254 | 3/4" | 19.1 | 29.4 | 17.2 | 68.8 | 152.4 | 0.56 | 121.92 |
| -7525450 | 3/4" | 19.1 | 29.4 | 17.2 | 68.8 | 152.4 | 0.56 | 15.24 |
| -75304 | 3/4" | 19.1 | 29.4 | 20.7 | 82.8 | 152.4 | 0.56 | 121.92 |
| -7530450 | 3/4" | 19.1 | 29.4 | 20.7 | 82.8 | 152.4 | 0.56 | 15.24 |
| -100200 | 1 | 25.4 | 35.7 | 13.8 | 55.2 | 177.8 | 0.69 | 91.44 |
| -10020050 | 1 | 25.4 | 35.7 | 13.8 | 55.2 | 177.8 | 0.69 | 15.24 |
| -100254 | 1 | 25.4 | 35.8 | 17.2 | 68.8 | 203.2 | 0.69 | 91.44 |
| -100304 | 1 | 25.4 | 36.5 | 20.7 | 82.8 | 203.2 | 0.75 | 91.44 |
| -10030450 | 1 | 25.4 | 36.5 | 20.7 | 82.8 | 203.2 | 0.79 | 15.24 |
| -125204 | 1-1/4" | 31.8 | 45.2 | 13.8 | 55.2 | 228.6 | 1.15 | 76.2 |
| -150204 | 1-1/2" | 38.1 | 51.6 | 13.8 | 55.2 | 254 | 1.25 | 60.96 |
| -15020450 | 1-1/2" | 38.1 | 51.6 | 13.8 | 55.2 | 254 | 1.25 | 15.24 |
| -150204100 | 1-1/2" | 38.1 | 51.6 | 13.8 | 55.2 | 254 | 1.25 | 30.48 |
| -200154 | 2 | 50.8 | 64.8 | 13.8 | 55.2 | 355.6 | 1.67 | 76.2 |
