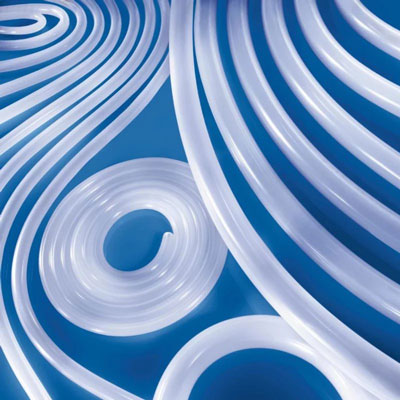

铂金硫化单层硅胶管
应用
铂金硫化单层硅胶管主要应用于制药、生物医学、化妆品、和食品等领域。无钢丝半透明硅胶管不适用于灌输、连续蒸汽应用或高压力环境。
| 温 度: | -60°C 到+200°C |
|---|---|
| 颜 色: | 半透明 |
| 符合认证: | FDA, USP,BFR, USDA, ISO 10993 |
产品描述
| 产品编码 | 内径 | 壁厚 | 外径 | |||
|---|---|---|---|---|---|---|
| No. | in. | mm. | in. | mm. | in. | mm. |
| A0-037-0030 | * | 0.76 | 0.018 | 0.46 | 0.066 | 1.67 |
| A0-037-0031 | * | 0.76 | 0.065 | 1.65 | 0.16 | 4.06 |
| A0-037-0040 | * | 1.02 | 0.023 | 0.58 | 0.086 | 2.18 |
| A0-037-0063 | 1/16" | 1.59 | 0.031 | 0.79 | 0.125 | 3.18 |
| A0-037-0064 | 1/16" | 1.59 | 0.063 | 1.59 | 0.188 | 4.76 |
| A0-037-0078 | * | 1.98 | 0.031 | 0.79 | 0.141 | 3.58 |
| A0-037-0094 | * | 2.38 | 0.063 | 1.59 | 0.219 | 5.56 |
| A0-037-0095 | * | 2.38 | 0.094 | 2.38 | 0.281 | 7.14 |
| A0-037-0125 | 1/8" | 3.18 | 0.063 | 1.59 | 0.25 | 6.35 |
| A0-037-0126 | 1/8" | 3.18 | 0.094 | 2.38 | 0.313 | 7.94 |
| A0-037-0127 | 1/8" | 3.18 | 0.125 | 3.18 | 0.375 | 9.53 |
| A0-037-0156 | 1/6" | 3.97 | 0.063 | 1.59 | 0.281 | 7.14 |
| A0-037-0157 | 1/6" | 3.97 | 0.125 | 3.18 | 0.406 | 10.31 |
| A0-037-0187 | 3/16 | 4.76 | 0.063 | 1.59 | 0.313 | 7.94 |
| A0-037-0188 | 3/16 | 4.76 | 0.094 | 2.38 | 0.375 | 9.53 |
| A0-037-0189 | 3/16 | 4.76 | 0.125 | 3.18 | 0.438 | 11.11 |
| A0-037-0250 | 1/4" | 6.35 | 0.031 | 0.79 | 0.313 | 7.94 |
| A0-037-0251 | 1/4" | 6.35 | 0.063 | 1.59 | 0.375 | 9.53 |
| A0-037-0252 | 1/4" | 6.35 | 0.094 | 2.38 | 0.438 | 11.11 |
| A0-037-0253 | 1/4" | 6.35 | 0.125 | 3.18 | 0.5 | 12.7 |
| A0-037-0310 | 5/16" | 7.94 | 0.031 | 0.79 | 0.375 | 9.53 |
| A0-037-0311 | 5/16" | 7.94 | 0.063 | 1.59 | 0.438 | 11.11 |
| A0-037-0312 | 5/16" | 7.94 | 0.094 | 2.38 | 0.5 | 12.7 |
| A0-037-0313 | 5/16" | 7.94 | 0.125 | 3.18 | 0.563 | 14.3 |
| A0-037-0375 | 3/8" | 9.53 | 0.031 | 0.79 | 0.438 | 11.11 |
| A0-037-0376 | 3/8" | 9.53 | 0.063 | 1.59 | 0.5 | 12.7 |
| A0-037-0377 | 3/8" | 9.53 | 0.094 | 2.38 | 0.563 | 14.3 |
| A0-037-0378 | 3/8" | 9.53 | 0.125 | 3.18 | 0.625 | 15.88 |
| A0-037-0500 | 1/2" | 12.7 | 0.063 | 1.59 | 0.625 | 15.88 |
| A0-037-0501 | 1/2" | 12.7 | 0.094 | 2.38 | 0.688 | 17.48 |
| A0-037-0502 | 1/2" | 12.7 | 0.125 | 3.18 | 0.75 | 19.05 |
| A0-037-0563 | 9/16" | 14.3 | 0.094 | 2.38 | 0.75 | 19.05 |
| A0-037-0625 | 5/8" | 15.88 | 0.125 | 3.18 | 0.875 | 22.23 |
| A0-037-0626 | 5/8" | 15.88 | 0.188 | 4.76 | 1 | 25.4 |
| A0-037-0750 | 3/4" | 19.05 | 0.125 | 3.18 | 1 | 25.4 |
| A0-037-0751 | 3/4" | 19.05 | 0.188 | 4.76 | 1.125 | 28.58 |
| A0-037-0870 | 7/8" | 22.23 | 0.063 | 1.59 | 1 | 25.4 |
| A0-037-0875 | 7/8" | 22.23 | 0.125 | 3.18 | 1.125 | 28.58 |
| A0-037-1000 | 1" | 25.4 | 0.125 | 3.18 | 1.25 | 31.75 |
| A0-037-1001 | 1" | 25.4 | 0.188 | 4.76 | 1.375 | 34.93 |
| A0-037-1002 | 1" | 25.4 | 0.25 | 6.35 | 1.5 | 38.1 |
名称：铂金硫化单层硅胶管
标签：单层硅胶管,透明硅胶管
